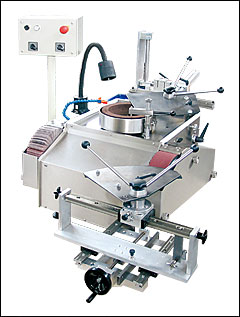

Grinding attachment for sickle-shaped cutter knifes facilitate professional grinding on a pot disk. Grinding angle is adjustable.
|
|
 |
|
Grinding attachment for sickle-shaped and linear cutter knifes enables to grind both kinds of knifes by a pot disk. 2 num- bers of revolutions and well as cooling system optize the grinding process.
|
|
 |
|
Sickle-shaped and linear cutter knifes are given an extra fine surface by using the grinding attachment at the grinding belt.
|
|
 |
|
The Cutter knifes are given their fine trimming on the finned brush. Different sharpening granulations can be used.
|
|
 |
|
Round knife grinding attachment enables to provide precise cutting phases with optional angles at the pot disk.
|
|
 |
|
Optional straightener device can be used to flat-pull the pot disk.
|
|
 |
|
For table-mounted machine separate coolant device and table can be ordered.
|
|
 |
|
For semiautomatically ballus grinding of cutter knifes electrical altitude oscillation is availble.
|
|
|
|
2 speed belt grinding drive 0,75/ 1,1 kW
2 speed grinding wheel drive measurement 0,75/ 1,1 kW
Height 700 mm
Widht 900 mm
Lenght 950 mm
Voltage 3x400 V AC, 50 Hz
Power 2,3 kW, 16 A
Weight nearly 100 kg
Grinding wheel 250x80 mm
Grinding belt 80x1600 mm
Finned brush 250x80 mm
Machines correspond EEC safety regulations and are CE certified.
|
|
|
|
|
